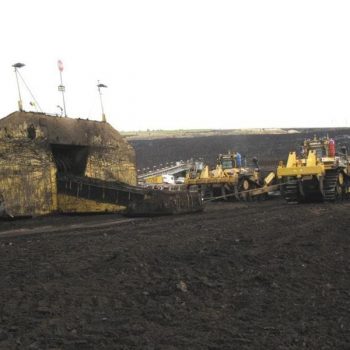

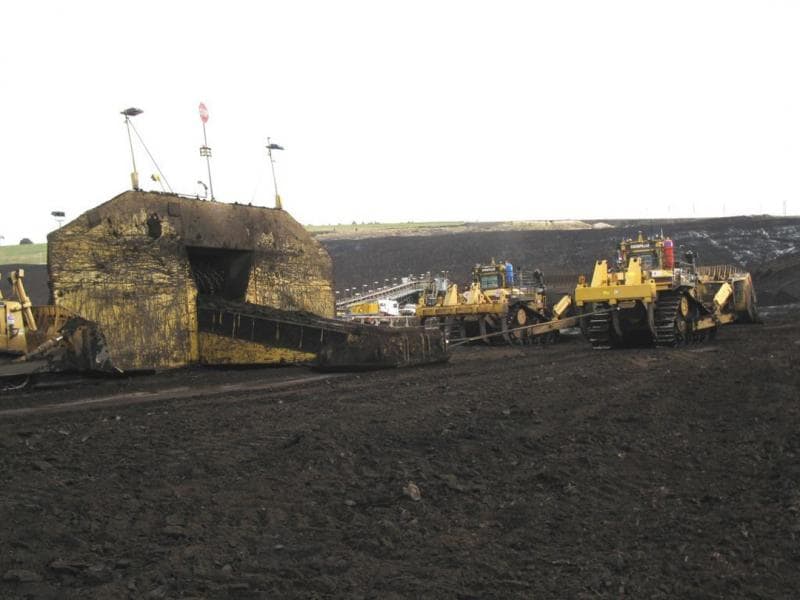

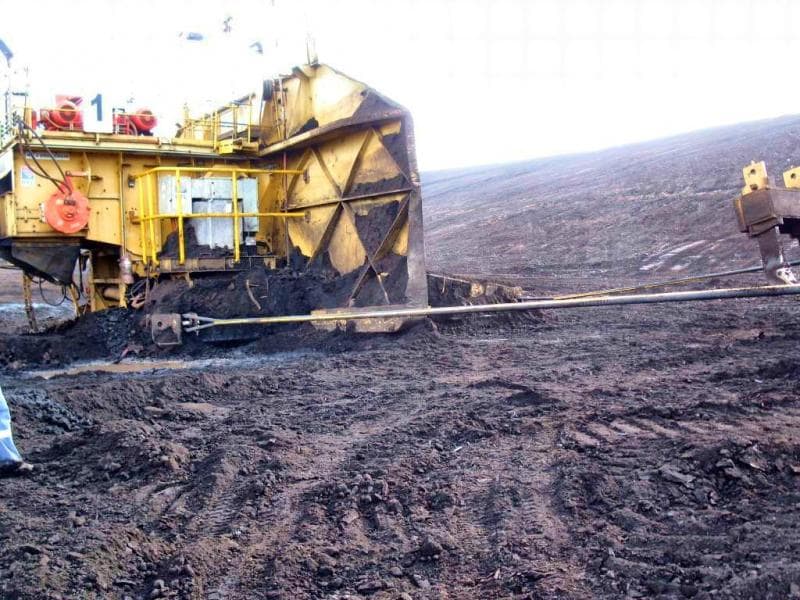

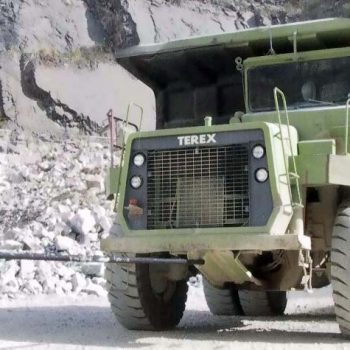

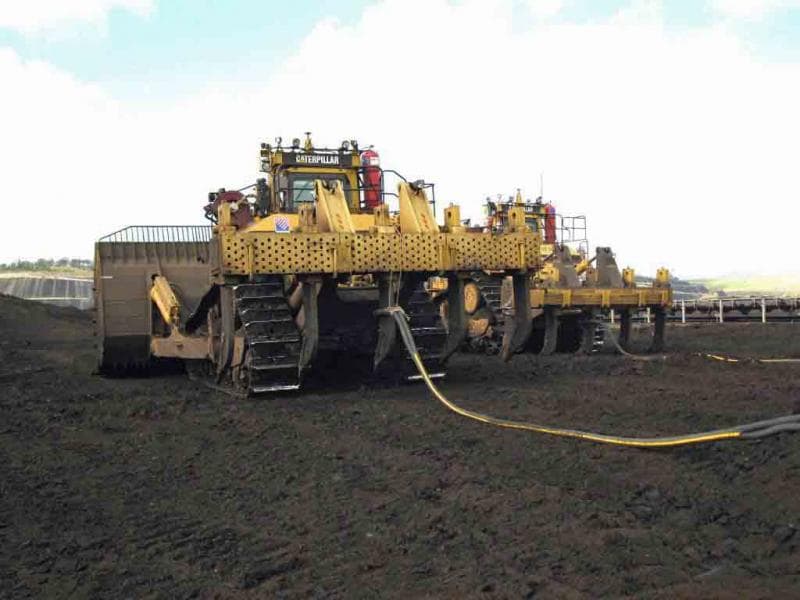

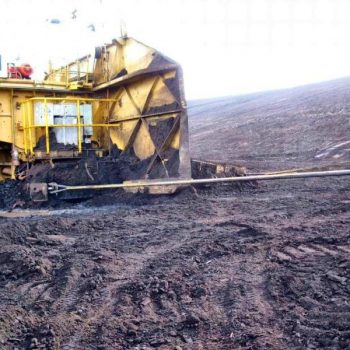

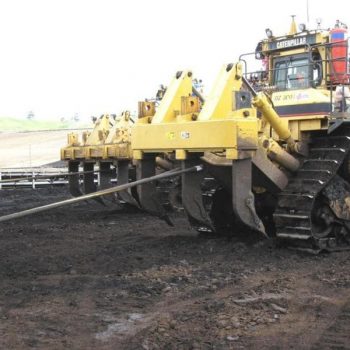

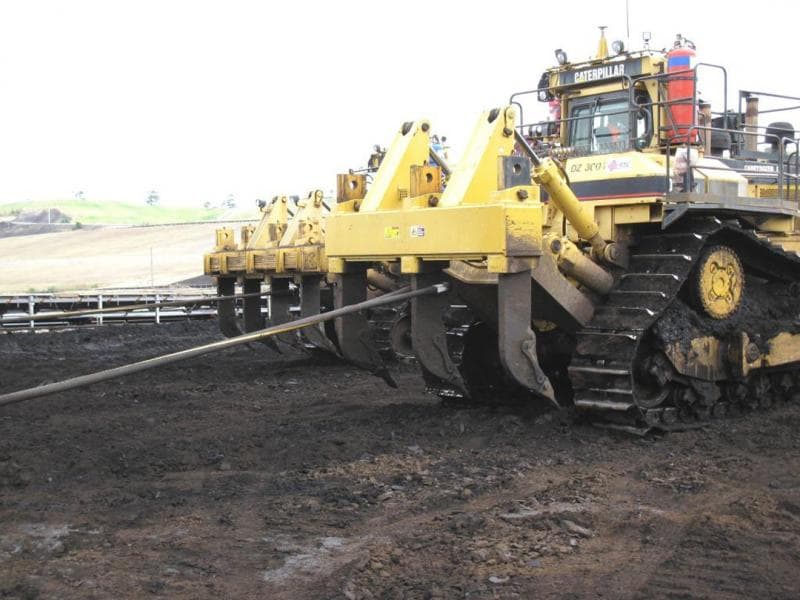

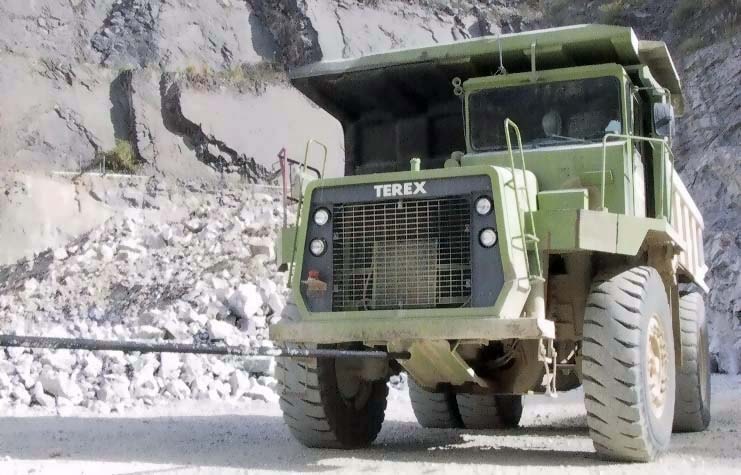

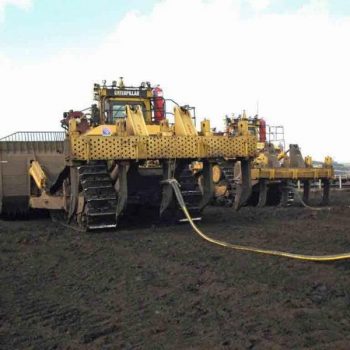

Black Snake Kevlar® Recovery Strops are designed for recovery and towing of mining, heavy commercial, and military vehicles and plant.
Black Snakes Kevlar® Recovery Strops are an ideal substitute for heavy and unwieldy chains and wire rope recovery equipment. The low stretch and recoil during the recovery / tow makes the Black Snake safe to use in all conditions.
The rubberized outer coating protects the load bearing fibres from the elements and is more durable than most fibre ropes, synthetic webbing straps or round slings.
Features of the Black Snake Kevlar® Recovery Strop:
- Ranges in size from 20 tonne to 300+ tonne for a wide range of applications.
- Kevlar® load fibres offer very low stretch (4%)
- Ultra high strength to weight ratio
- Abrasion/cut resistant rubber protects the Kevlar® from the elements and keeps out oil, water, mud and dust

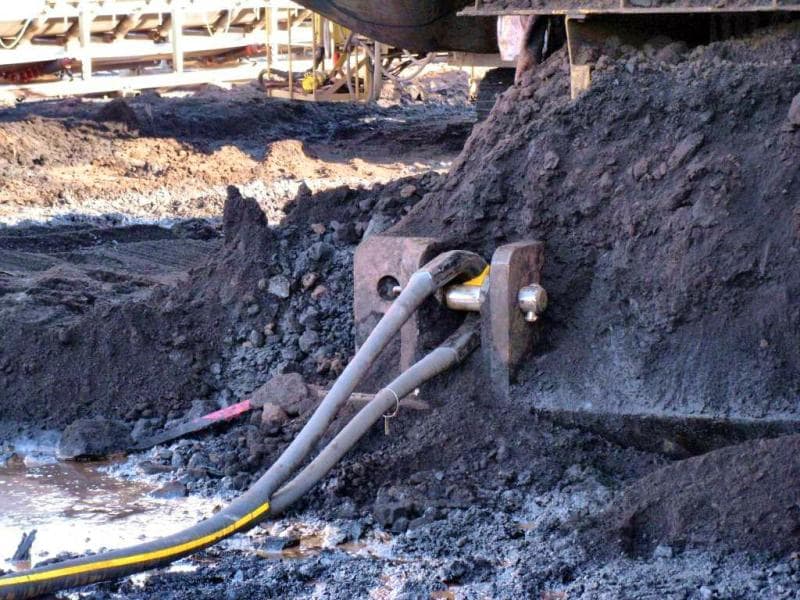

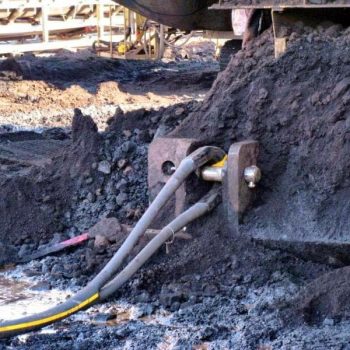

- Specially designed steel eyes suit attachment to shackle pins, hitch pins, and G Type couplings
- Special end fittings or steel thimbles can also be fitted according to customer requirements
- Lengths available from 1 metre to 20 metres and can be manufactured to order in non-standard lengths as required.
- Break Strength is clearly marked on each Black Snake Kevlar® Recovery Strop
- Individual serial numbers provide traceability
BREAK STRENGTH¹
20 tonne
500mm length
3kg
1 metre length
3.5kg
1.5 metre length
5kg
3 metre length
8kg
6 metre length
11kg
10 metre length
16kg
15 metre length
24kg
20 metre length
28kg
Maximum GVW² Severely bogged vehicle³ 15 tonne Thimble hole size and eye width Ø72mm and 40mm
Recommended coupling
8.5-12 tonne
S grade shackle pin
Coupling link
18 – 20mm
BREAK STRENGTH¹
30 tonne
500mm length
3kg
1 metre length
3.5kg
1.5 metre length
5kg
3 metre length
8kg
6 metre length
11kg
10 metre length
16kg
15 metre length
24kg
20 metre length
28kg
Maximum GVW² Severely bogged vehicle³ 20 tonne Thimble hole size and eye width Ø56mm and 34mm
Recommended coupling
8.5 -17 tonne
S grade shackle pin
Coupling link 16mm
BREAK STRENGTH¹
50 tonne
500mm length
4kg
1 metre length
4kg
1.5 metre length
6kg
3 metre length
9kg
6 metre length
13kg
10 metre length
20kg
15 metre length
27kg
20 metre length
36kg
Maximum GVW² Severely bogged vehicle³ 35 tonne Thimble hole size and eye width Ø56mm and 44mm
Recommended coupling
12-25 tonne
S grade shackle pin
Coupling link 22mm
BREAK STRENGTH¹
70 tonne
500mm length
N/A
1 metre length
5kg
1.5 metre length
7kg
3 metre length
12kg
6 metre length
18kg
10 metre length
28kg
15 metre length
33kg
20 metre length
44kg
Maximum GVW² Severely bogged vehicle³ 50 tonne Thimble hole size and eye width Ø63mm and 56mm
Recommended coupling
17-35 tonne
S grade shackle pin
Coupling link 26mm
BREAK STRENGTH¹
100 tonne
500mm length
N/A
1 metre length
N/A
1.5 metre length
13kg
3 metre length
16kg
6 metre length
24kg
10 metre length
35kg
15 metre length
40kg
20 metre length
56kg
Maximum GVW² Severely bogged vehicle³ 70 tonne Thimble hole size and eye width Ø100mm and 70mm
Recommended coupling
25-42 tonne
S grade shackle pin
Coupling link 32mm
BREAK STRENGTH¹
150 tonne
500mm length
N/A
1 metre length
N/A
1.5 metre length
15kg
3 metre length
18kg
6 metre length
25kg
10 metre length
37kg
15 metre length
50kg
20 metre length
65kg
Maximum GVW² Severely bogged vehicle³ 100 tonne Thimble hole size and eye width Ø80mm and 70mm
Recommended coupling
35-55 tonne
S grade shackle pin
N/A
BREAK STRENGTH¹
200 tonne
500mm length
N/A
1 metre length
N/A
1.5 metre length
N/A
3 metre length
N/A
6 metre length
32kg
10 metre length
44kg
15 metre length
59kg
20 metre length
77kg
Maximum GVW² Severely bogged vehicle³ 150 tonne Thimble hole size and eye width Ø80mm and 80mm
Recommended coupling
42-55 tonne
S grade shackle pin
N/A
BREAK STRENGTH¹
300 tonne
500mm length
N/A
1 metre length
N/A
1.5 metre length
N/A
3 metre length
N/A
6 metre length
45kg
10 metre length
59kg
15 metre length
86kg
20 metre length
112kg
Maximum GVW² Severely bogged vehicle³ 200 tonne Thimble hole size and eye width Ø90mm and 100mm
Recommended coupling
55-85 tonne
S grade shackle pin
N/A
- Break strength is the applied load at which the recovery strop fails
- Maximum GVW is the maximum recommended gross vehicle weight of a severely bogged vehicle for a given tow strop
- Severely bogged vehicle is judged as a vehicle which is resting on its axles or chassis. The vehicle is being dragged with no rolling of the wheels
